High Power Right Angle RF Adapters
7/16 DIN, HN, LC, and N-Type High Power Right Angle RF Adapters | Bracke Manufacturing
50 OHMS
IMPEDANCE
4 GHz
FREQUENCY
≥ 5000 Vrms
DIELECTRIC STRENGTH
2700 VOLTS
VOLTAGE RATING

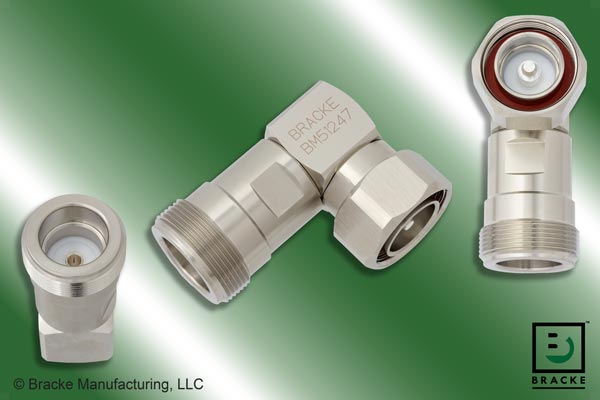

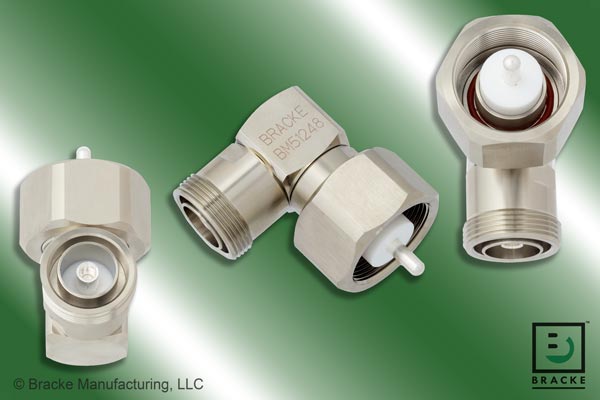

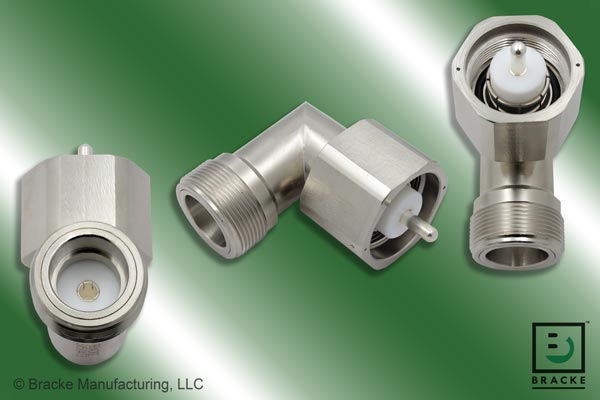

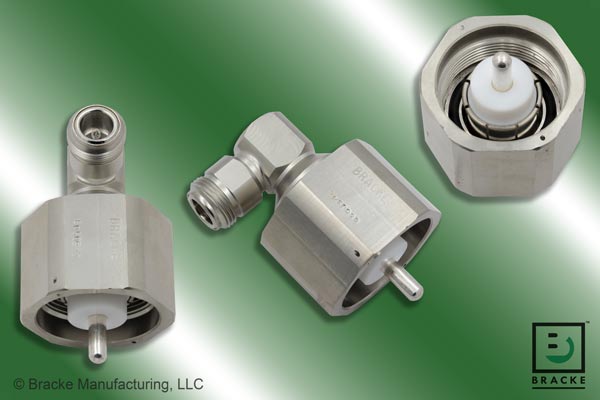

Bracke Manufacturing’s high power right angle RF adapters are designed for reliable RF signal routing in applications where space, cable direction, and high-voltage performance matter. These adapters feature LC interface configurations with transitions to 7/16 DIN, HN, LC, and N-Type connectors, making them suitable for broadcast, laboratory, test systems, and high-power RF equipment.
Available in male and female interface combinations, each model is rated for 50 Ohm impedance, 4 GHz operating frequency, 2700 volts, and a typical VSWR of 1.20:1. The right angle design helps simplify installation in tight layouts while maintaining dependable electrical performance.
Select a model below to view detailed specifications, pricing, and product drawings.
Why Choose Bracke Manufacturing?
Bracke Manufacturing delivers high power right angle RF adapters backed by extensive in-stock inventory, fast lead times, and responsive technical support. Designed for consistent electrical performance, these adapters support demanding RF systems across laboratory, broadcast, and system integration environments.
When you choose Bracke Manufacturing, you’re partnering with a trusted leader in precision RF and microwave connectivity. Guided by industry veteran Lawrence Pasternack, Bracke delivers expertly engineered solutions that combine precision, reliability, and performance. Custom RF adapter solutions are also available—typically in about 5 weeks—to meet unique interface or installation requirements. Explore our full product lineup to find the right solution for your RF testing and system integration needs.
High Power Right Angle Adapters Q&A
What are high power right angle RF adapters used for?
High power right angle RF adapters are used to change connector direction in RF systems where space is limited or cable routing needs to be redirected at 90 degrees.
What connector interfaces are available?
This product group from Bracke includes LC interface adapters with in-series LC configurations and transitions to HN, N-Type, and 7/16 DIN connectors.
Are these adapters 50 Ohm?
Yes. These high power right angle adapters are designed for 50 Ohm RF systems.
What is the operating frequency?
These models are designed for operation up to 4 GHz.
What is the voltage rating?
The listed models feature a voltage rating of 2700 volts, with dielectric withstanding voltage rated at ≥ 5,000 Vrms.
Are male and female configurations available?
Yes. Available configurations include male-to-male, female-to-female, male-to-female, and female-to-male right angle adapter options.
For more information, call (949) 756-1600 or email sales@brackemfg.com. Request our free catalog or contact us for technical support and custom RF solutions.
